Description
- DOES NOT WORK WITH COSTA HANDGUARD RAIL SYSTEM:
- This 5" picatinny rail is too short and too low to pair up with the Costa rail system. You need to Costa 6" receiver rail.
- "MILITARY SPEC":
- Does not work with "weaver spec rings/red dot mounts (e.g. Leupold)
- FITS MARLIN and ROSSI 95 large frame receivers in 45-70 Govt, 30-30 Win, 444 Marlin and 360 Buckhammer:
- Rifles with the large receivers drilled and tapped. Does not Fit the Small Frame rifles in 357 Mag, 44 Mag or 45 Colt.
- INCLUDED:
- One mil-spec picatinny rail, four 8-40x1/8" screws

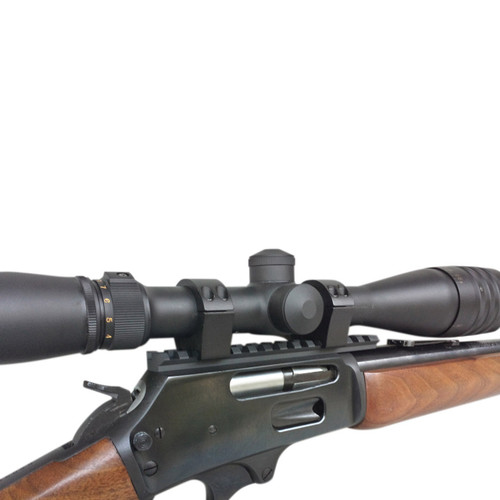

Precision Machined, Adjustable Rifle Scope Mount Picatinny Rails - Low Profile, Built to Last and Improve Accuracy
- SKU 15: Marlin Pistol Caliber Rifles (E.g. 44 Mag, 357 Mag, 45 LC)
- SKU 17: Henry Pistol Caliber Rifles (E.g. 41 Mag, 44 Mag, 357 Mag, 45 LC)
- SKU 16: Marlin Calibers (E.g. 30-30, 38-55, 35 Rem, 308, 338, 360 buckhammer, .410, 444, 45-70, 450M); Rossi 95 (all calibers)
Low profile and the strongest picatinny scope mount optics rails on the market. Designed from the receiver up, these low-profile picatinny rail mount offer improved bore-to-optic positioning and eliminate movement for better accuracy even under the harshest recoil of a big bore rifle. Sight channel down the middle let's you use your rear/front sight with the rail installed.
Picatinny Rail Features:
RAIL HEIGHT: .28” (low rings!)
RAIL LENGTH: 5.5” receiver flush length
CloverLeaf Backup Peep Sight + RHINO Rail: Same size as this SKU 16
- Unbeatable RHINO toughness and repeatability
- Mil-spec picatinny rail (not compatible with Weaver picatinny spec mounts)
- Better alignment than two-piece mounts
- Contoured bottom and 10 MOA machined in for more elevation flexibility (zeroes to 0-5 due of negative cant on rifle receiver)

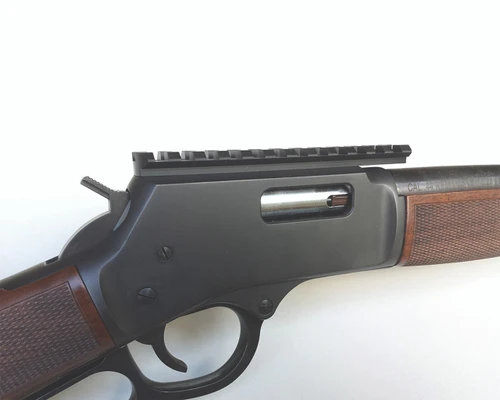

- Sight channel down the middle: allows you to use your rear peep (buckhorn, etc. mounted in the barrel dovetail) plus the front sight while the rail is installed
- Made from strong-as-steel anodized 7075 aluminum for light weight and rust-proof lifetime
- 2X the recoil lug contact improves accuracy by eliminating scope movement under the harshest recoil
- A set of three or four screws, as appropriate
